BES PRODUCT LIBRARY
High Capacity
WDS6000X
High Capacity Water Disinfection System
High-capacity ozone water treatment platform for demanding industrial, food and water sanitation applications.
KEY HIGHLIGHTS
✓ High-capacity water treatment
✓ Industrial use
✓ Process sanitation
✓ QC documentation ready
APPLICATIONS
✓ Factory
✓ Food & beverage
✓ Industrial
✓ Water tank
PRODUCT SPECS
Technology
Ozone water treatment
VIDEO LIBRARY
Product videos
INSTALLATION GUIDE
WDS6000X typical point-of-use installation
Click any installation image to open a larger preview. The installation content is kept as website text and cards so it remains sharp and easy to update.
1
Water In
→
2
Pre Filter
→
3
Shut-Off Valve
→
4
WDS6000X
→
5
Check Valve
→
6
Application
APPLICATION EXAMPLES
1

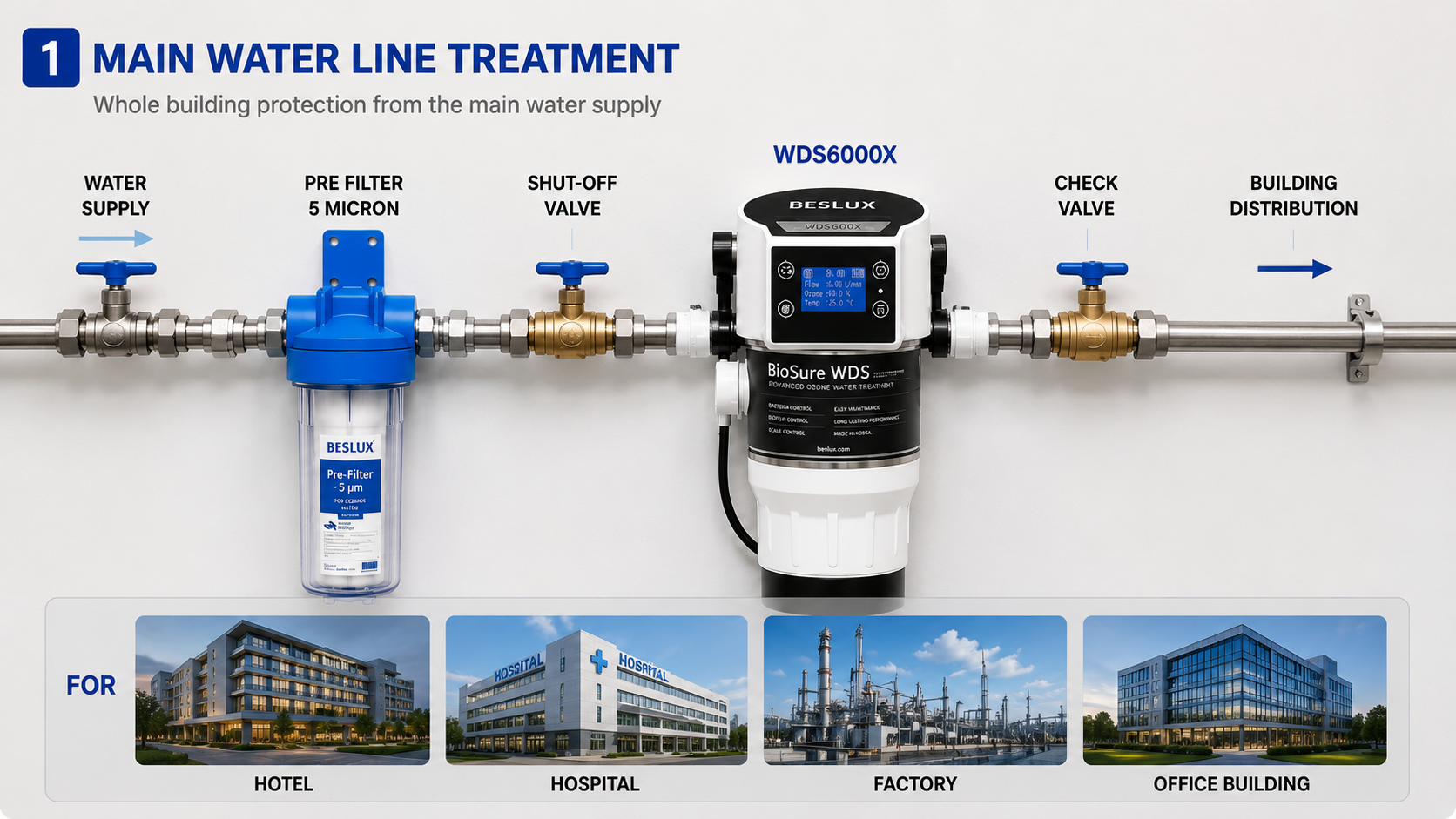

Main Water Line Treatment
2

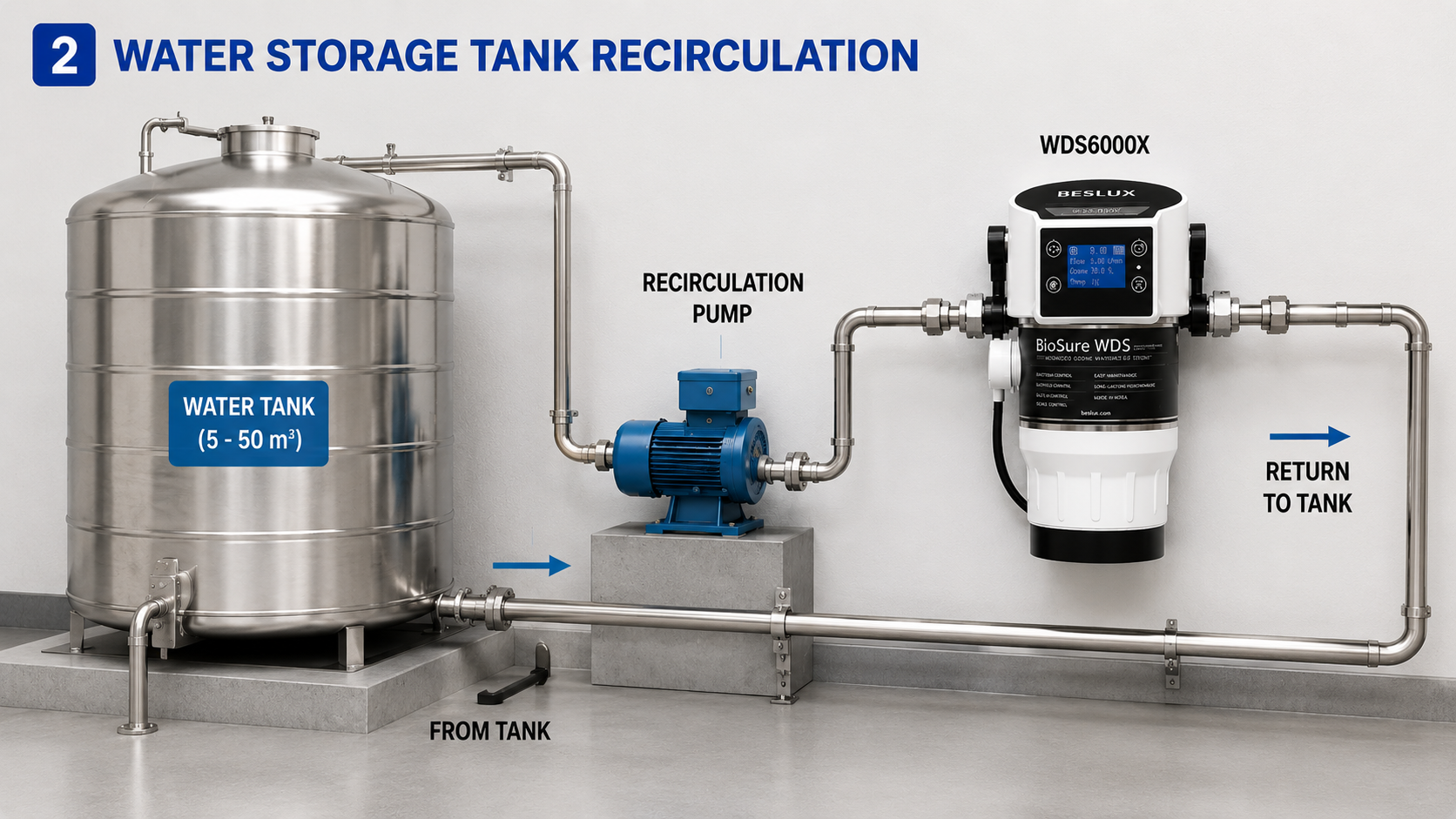

Water Storage Tank Recirculation
3

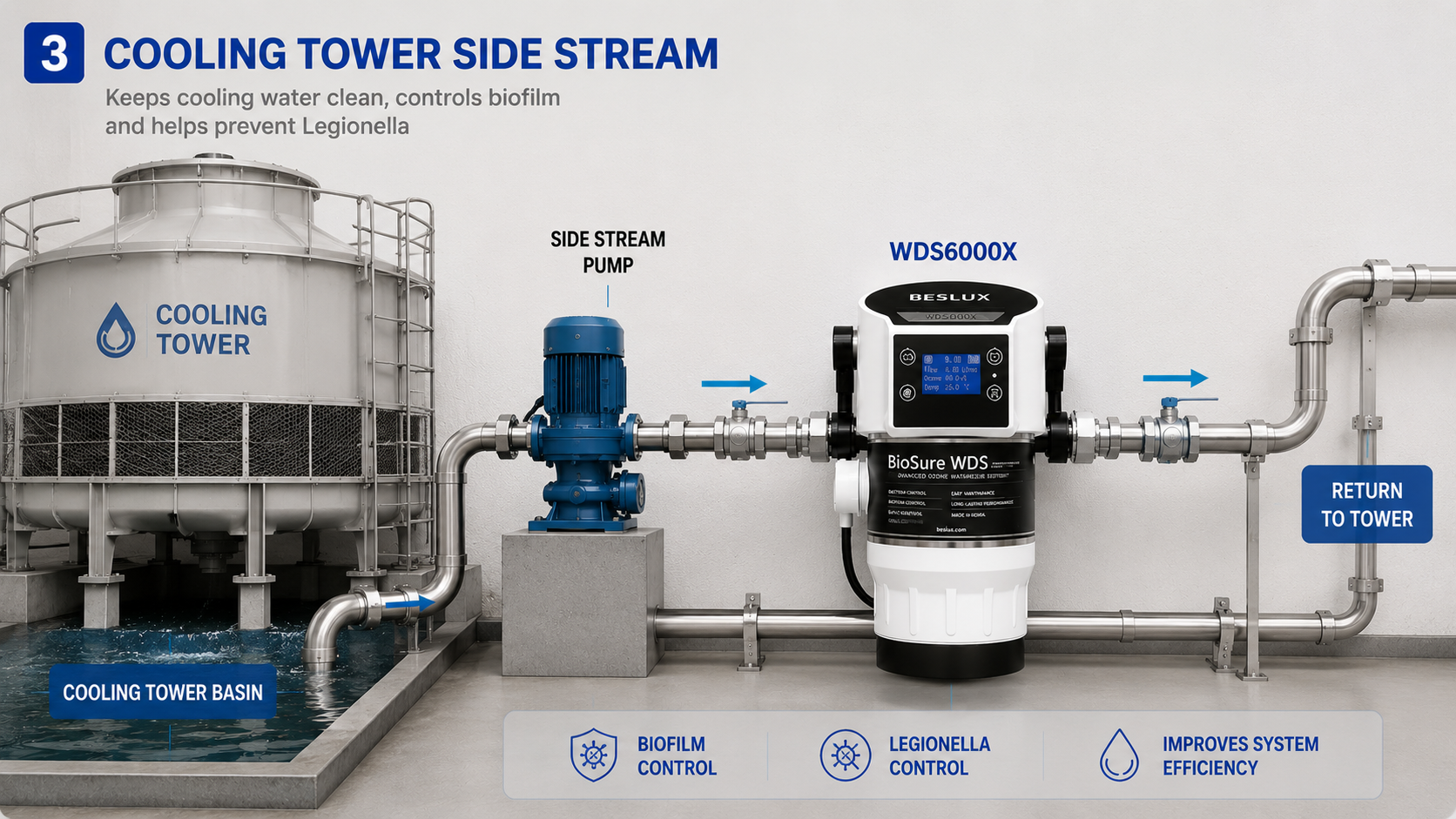

Cooling Tower Side Stream
4

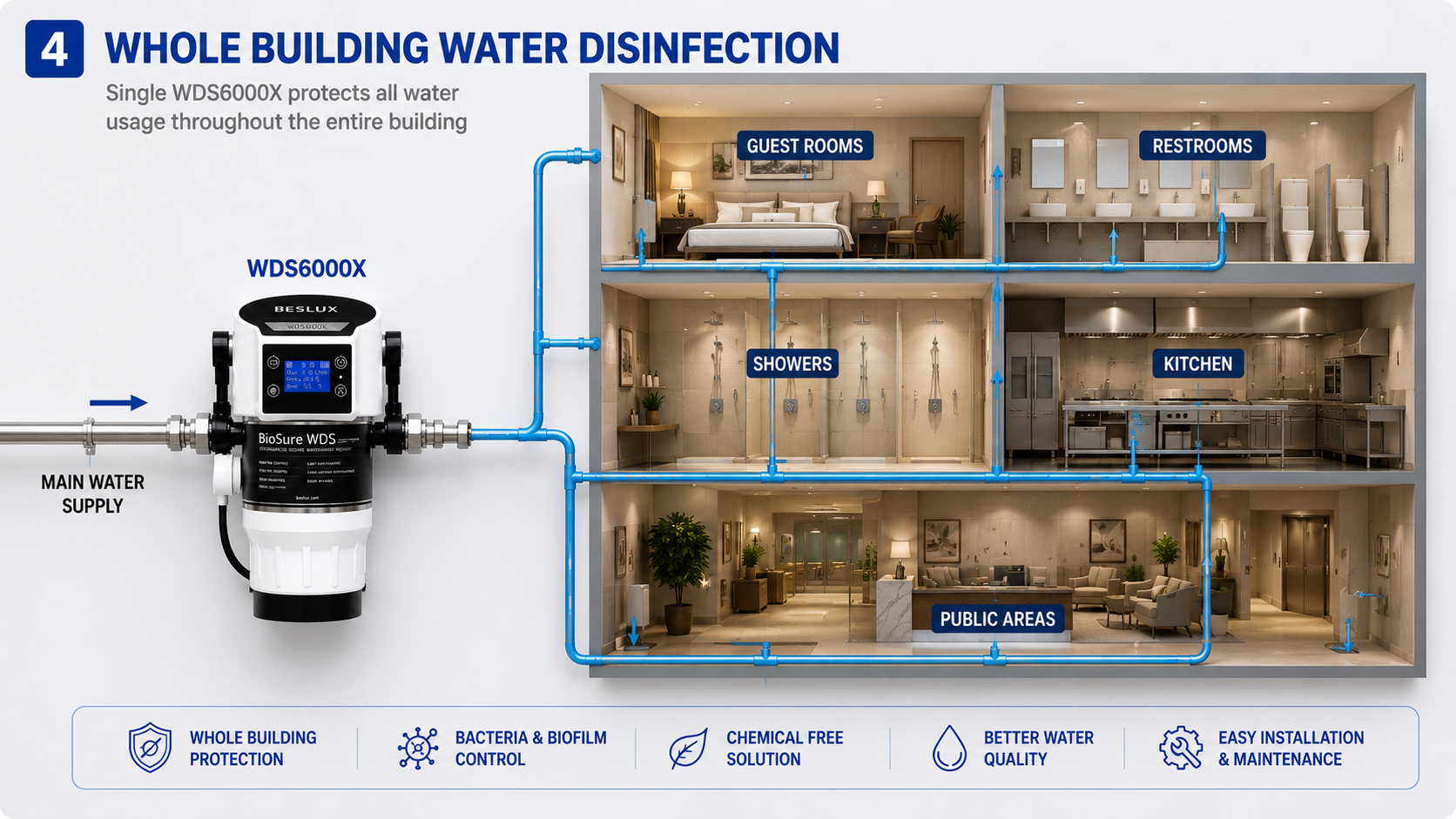

Whole Building Water DisinfectionINSTALLATION INFORMATION
INSTALLATION NOTES
✓ Install the unit in a horizontal position.
✓ Use a pre-filter ≤1μm before the WDS6000X.
✓ Install a shut-off valve for service and maintenance.
✓ Install a check valve to prevent backflow.
✓ Flush the pipe before installation.
✓ Do not install in an area where water may freeze.
INSTALLATION SPECIFICATIONS
Flow Rate5-35 L/min
Working Pressure1-6 bar
Water Temperature4-40°C
Connection Size3/4"
Verified Certification Profile
Certifications
Certification claims are read from the shared BES certification registry. Available controlled documents are linked from the product resource center.
CE Mark: Conformité EuropéenneCE MarkConformité Européenne
General EU product conformity
Open controlled document →CE MDR: EU Medical Device Regulation (EU) 2017/745; registration group 7178CE MDRMedical Device Regulation (EU) 2017/745
Registration group 7178 · Medical-device conformity
