Inline System
WDS2000X
Inline Ozone Water Treatment
Inline ozone water system for medium-flow sanitation, surface hygiene and process water applications.
KEY HIGHLIGHTS
✓ Medium-flow water treatment
✓ Inline integration
✓ Application-ready
✓ Service documentation ready
APPLICATIONS
✓ Pipe line in Dental Clinic
✓ Water tank
✓ Restaurant
✓ Industrial
PRODUCT SPECS
Technology
Ozone water inline treatment
VIDEO LIBRARY
Product videos
INSTALLATION GUIDE
WDS2000X typical point-of-use installation
Click any installation image to open a larger preview. The installation content is kept as website text and cards so it remains sharp and easy to update.
1
Water In
→
2
Pre Filter ≤1μm
→
3
Shut-Off Valve
→
4
Check Valve
→
5
WDS2000X
→
6
Equipment
APPLICATION EXAMPLES
1

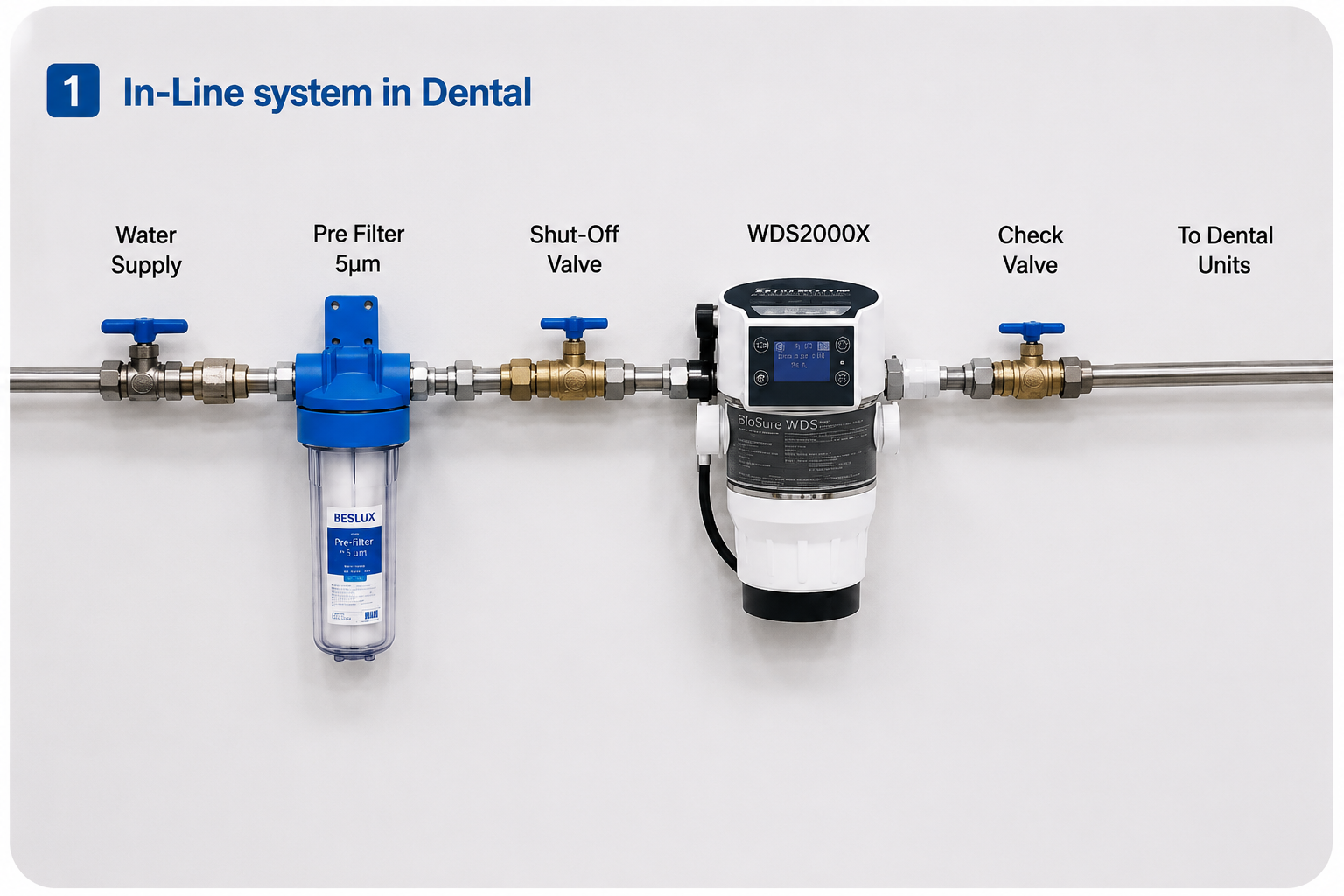

In-Line System in Dental
2

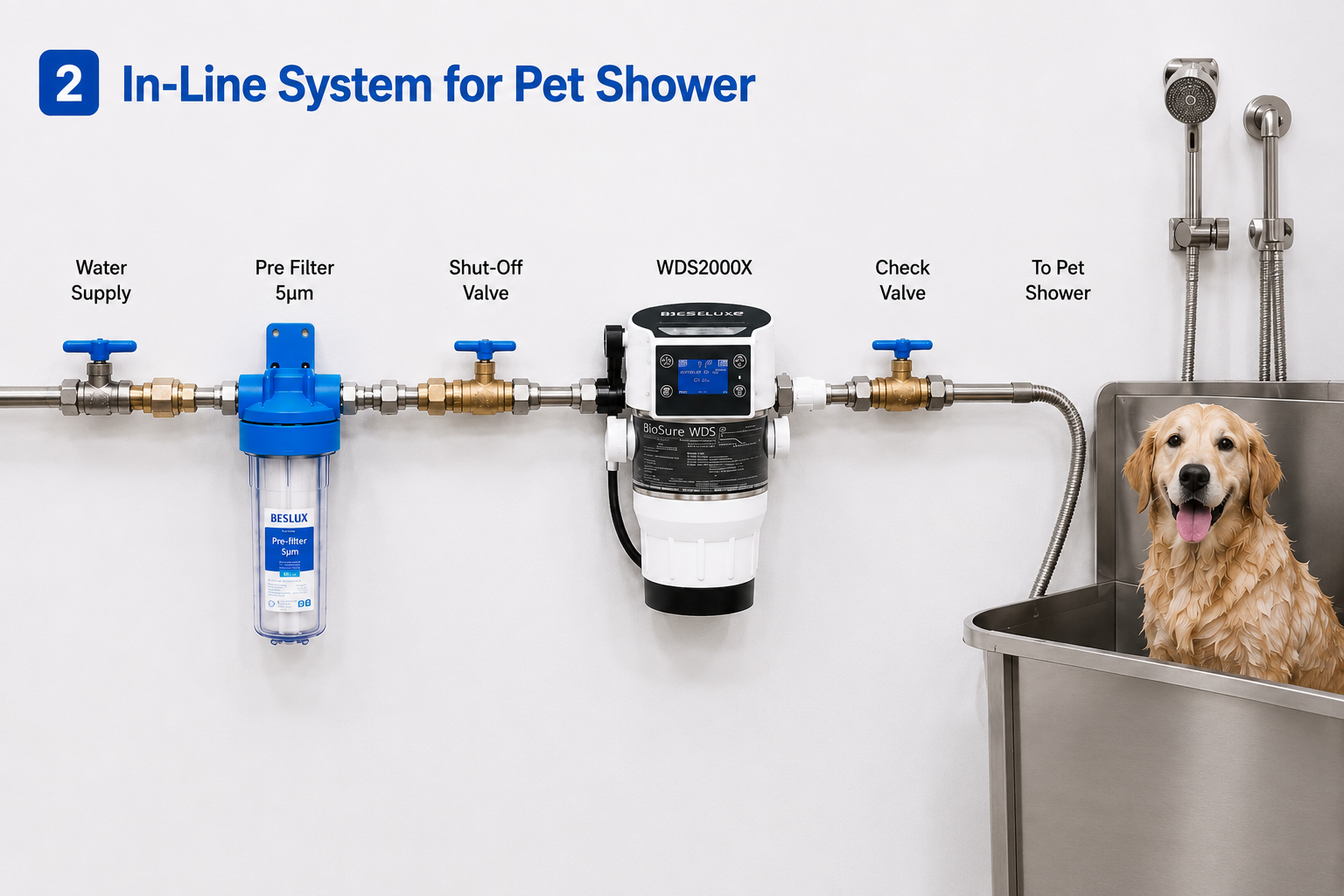

In-Line System for Pet Shower
3

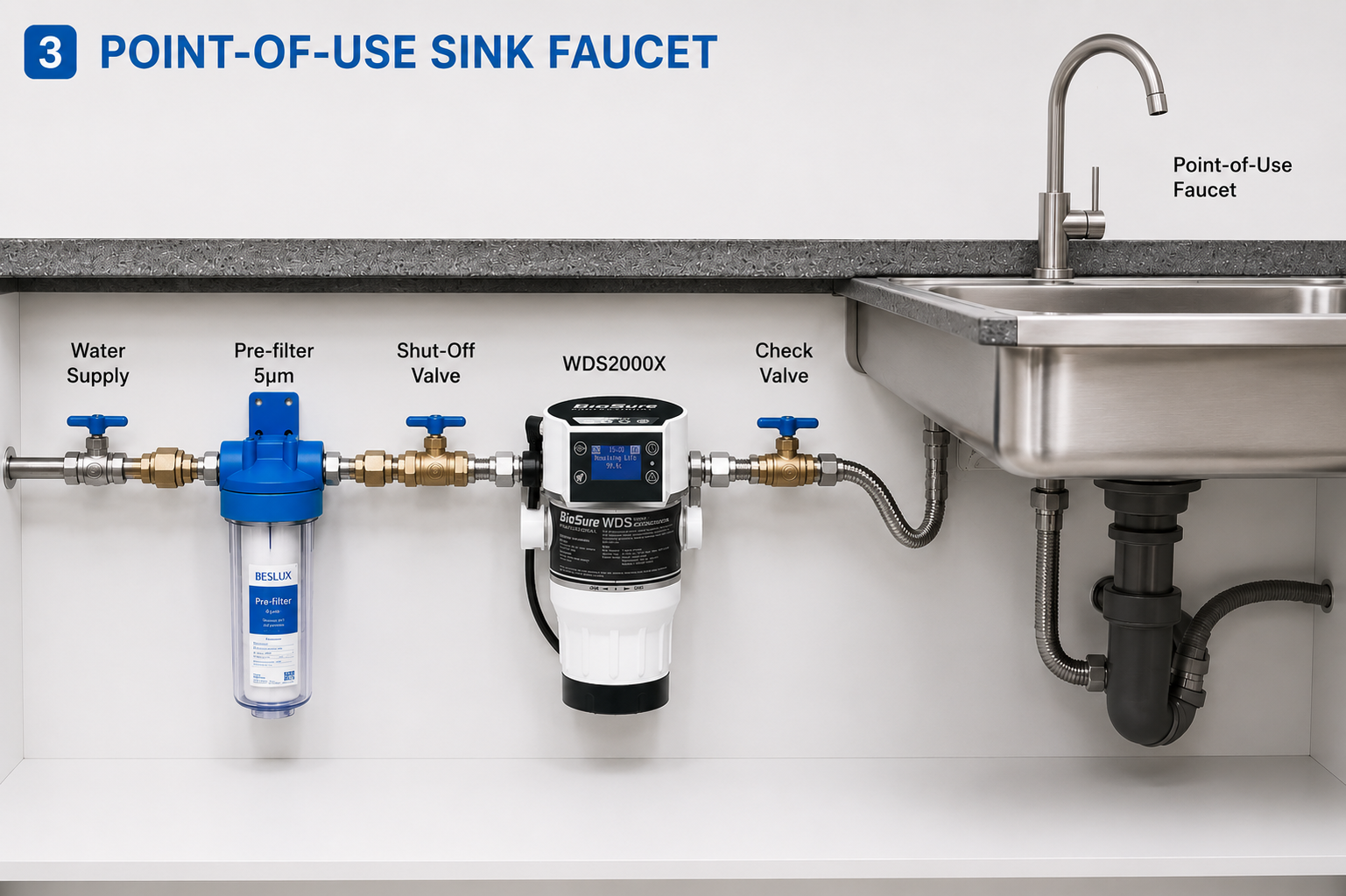

Point-of-Use Sink Faucet
4

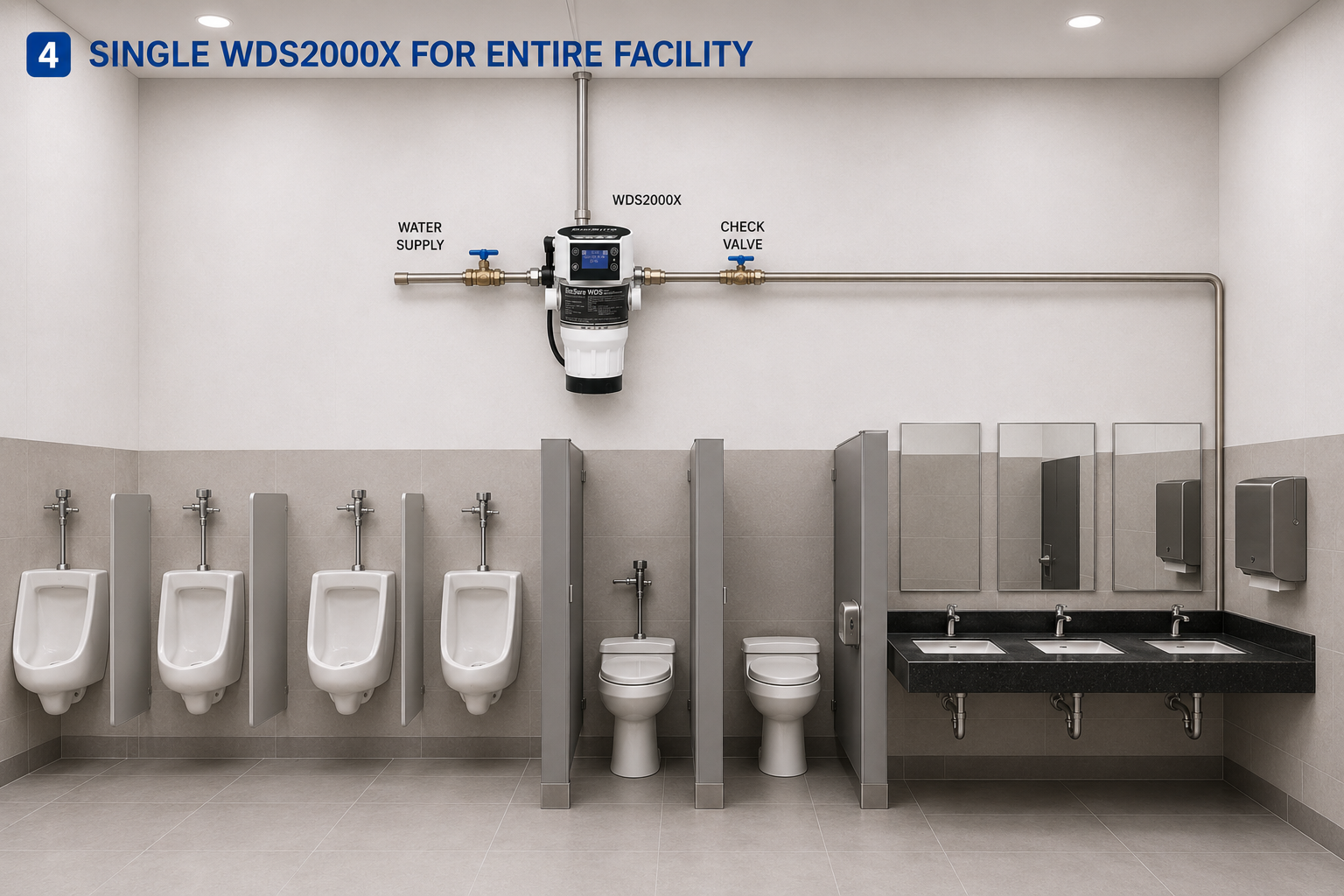

Single WDS2000X for Entire FacilityINSTALLATION INFORMATION
INSTALLATION NOTES
✓ Install the unit in a horizontal position.
✓ Use a pre-filter ≤1μm before the WDS2000X.
✓ Install a shut-off valve for service and maintenance.
✓ Install a check valve to prevent backflow.
✓ Flush the pipe before installation.
✓ Do not install in an area where water may freeze.
INSTALLATION SPECIFICATIONS
Flow Rate5-35 L/min
Working Pressure1-6 bar
Water Temperature4-40°C
Connection Size3/4"
Verified Certification Profile
Certifications
Certification claims are read from the shared BES certification registry. Available controlled documents are linked from the product resource center.
CE Mark: Conformité EuropéenneCE MarkConformité Européenne
General EU product conformity
Open controlled document →CE MDR: EU Medical Device Regulation (EU) 2017/745; registration group 7177CE MDRMedical Device Regulation (EU) 2017/745
Registration group 7177 · Medical-device conformity
Open controlled document →
NSF/ANSI 61: Drinking Water System Components — Health EffectsNSF/ANSI 61Drinking Water System Components — Health Effects
Health effects of drinking-water contact materials and components
