BES PRODUCT LIBRARY

Water Platform

WDS1200X

Name: WDS1200X
Brand: BES

Water Disinfection System

Inline ozonated water disinfection platform for ice machines, beverage systems, surface sanitation and professional water hygiene workflows.

Contact Sales →Ozone Engineering Handbook

KEY HIGHLIGHTS

✓ Inline ozone water

✓ Higher capacity than WDS600X

✓ Ice machine application

✓ Biofilm control support

APPLICATIONS

✓ Ice machine

✓ Food & beverage

✓ Surface sanitation

✓ Water treatment

PRODUCT SPECS

Technology

Electrolysis ozone water

System

Inline / water disinfection

Ozone

120 mg/h

Flow

30–1450 LPH

VIDEO LIBRARY

Product videos

INSTALLATION GUIDE

WDS1200X typical point-of-use installation

Click any installation image to open a larger preview. The installation content is kept as website text and cards so it remains sharp and easy to update.

Water In

→

Pre Filter ≤1μm

→

Shut-Off Valve

→

Check Valve

→

WDS1200X

→

Equipment

APPLICATION EXAMPLES

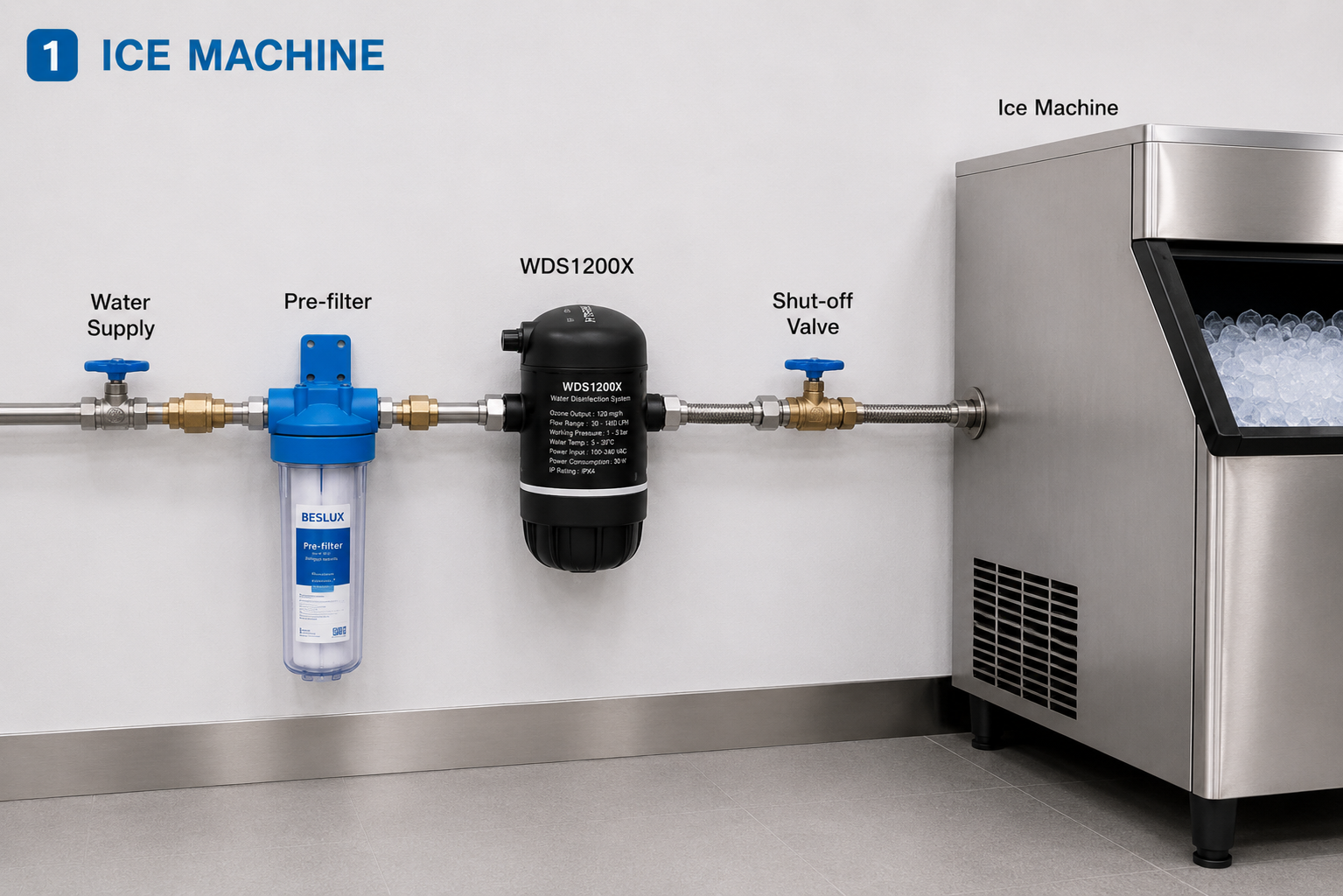

Ice Machine

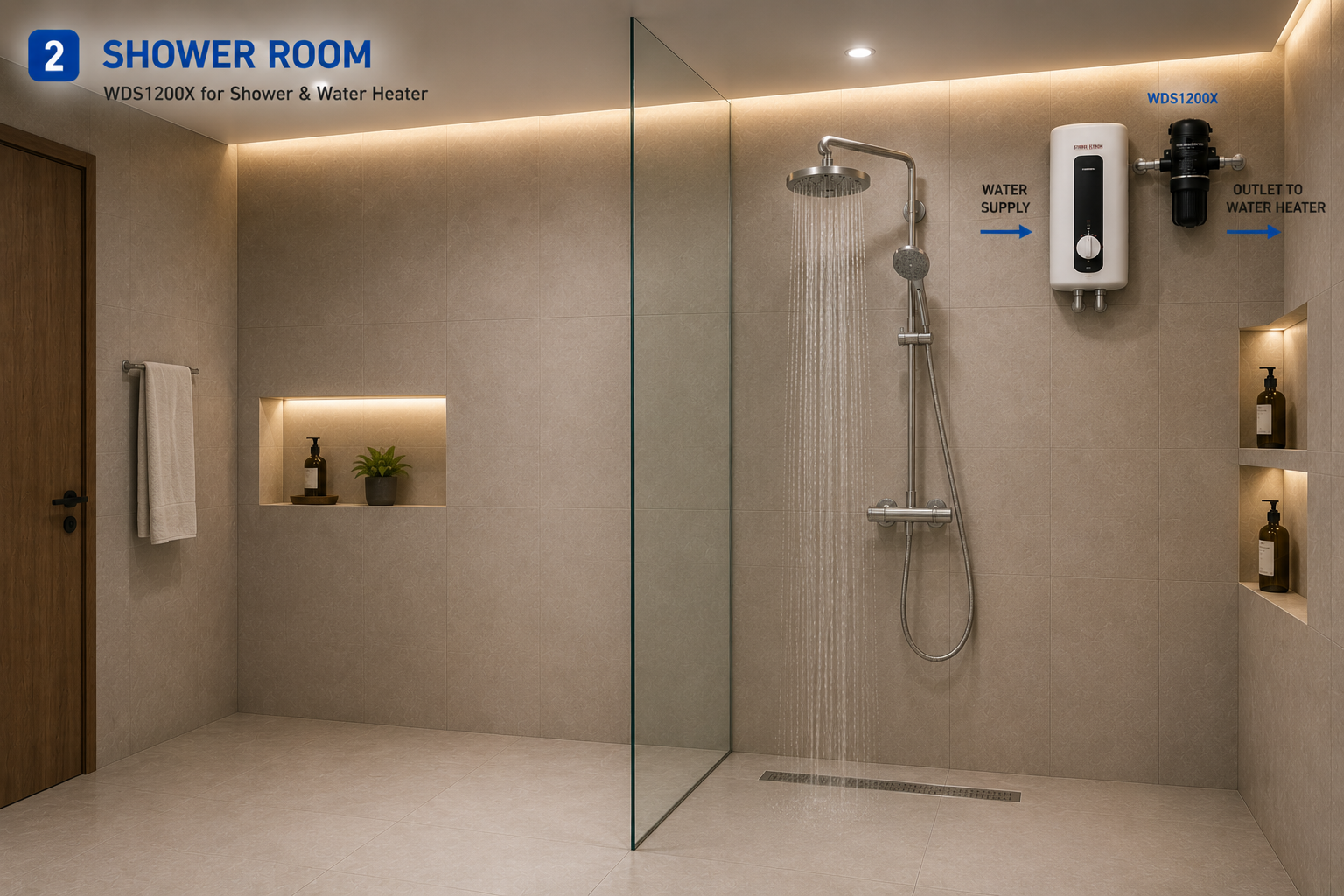

Shower Room

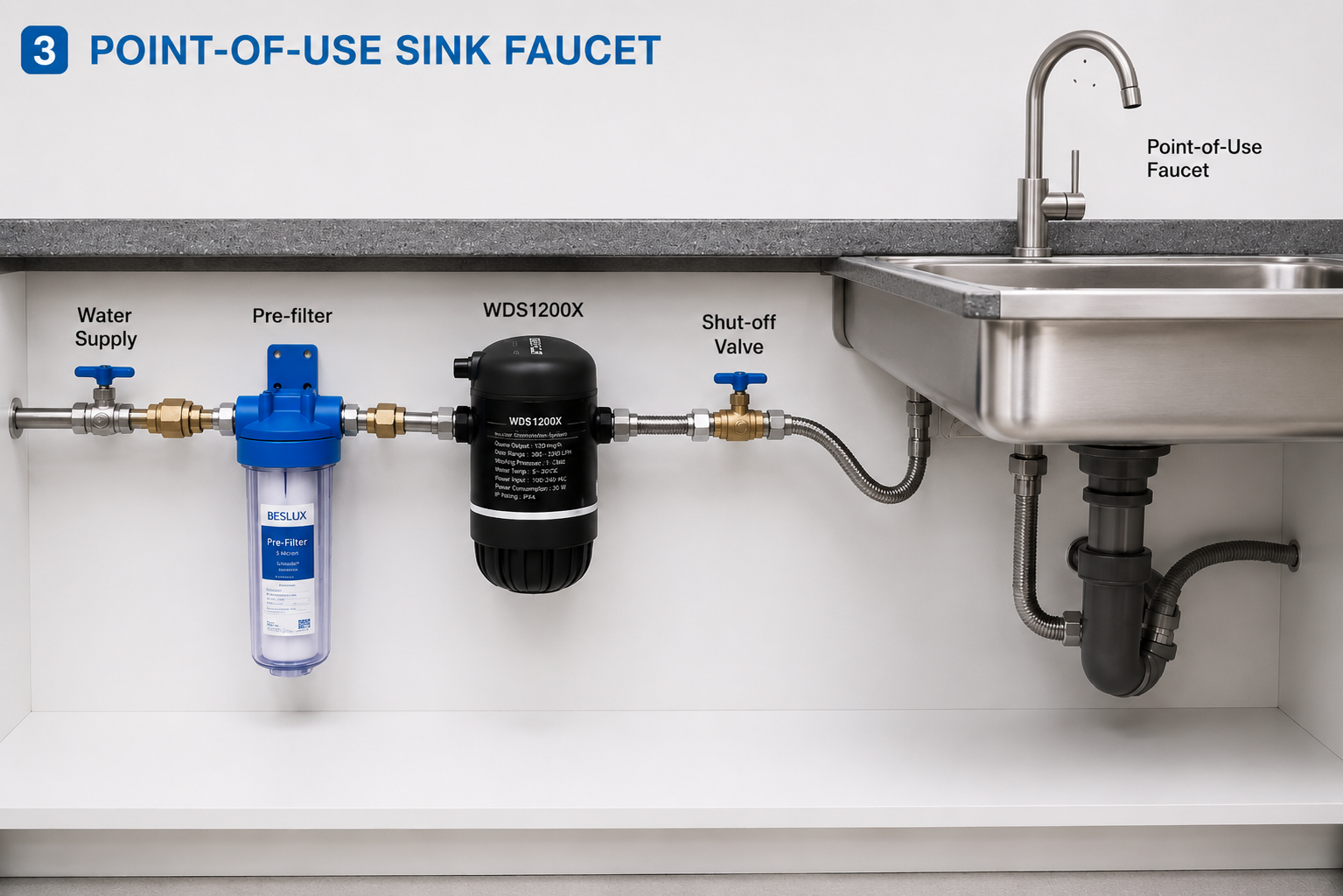

Bathroom Faucet

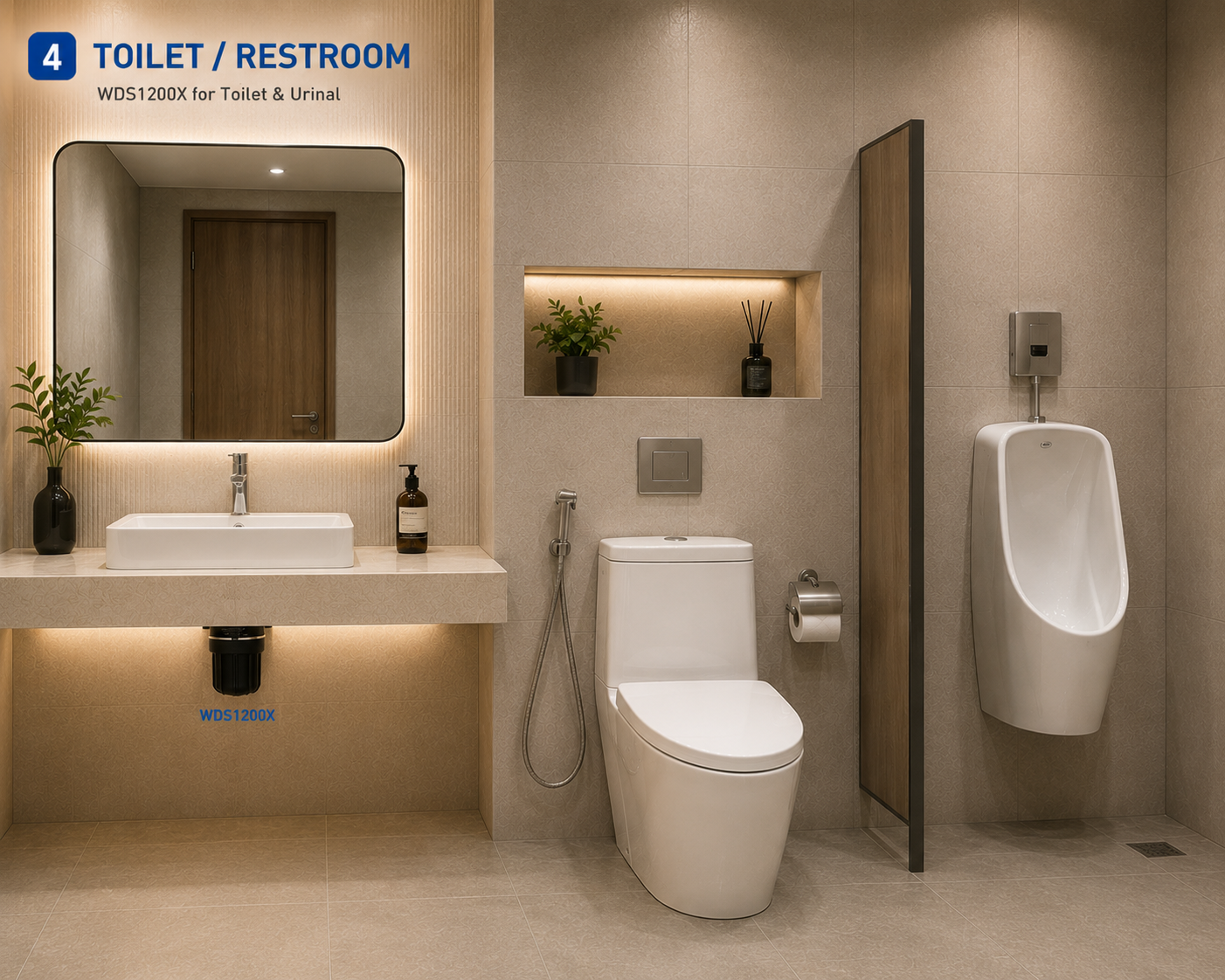

Toilet / Restroom

INSTALLATION INFORMATION

INSTALLATION NOTES

✓ Install the unit in a horizontal position.

✓ Use a pre-filter ≤1μm before the WDS1200X.

✓ Install a shut-off valve for service and maintenance.

✓ Install a check valve to prevent backflow.

✓ Flush the pipe before installation.

✓ Do not install in an area where water may freeze.

INSTALLATION SPECIFICATIONS

Flow Rate5-35 L/min

Working Pressure1-6 bar

Water Temperature4-40°C

Connection Size3/4"

QUICK SIMULATION

WDS1200X Flow vs Ozone Estimate

Quick estimate based on rated ozone output and operating flow range. Application-specific loss, CT and decay should be handled in Solution or Advanced Simulation.

Open Advanced Simulation →

Flow rate (LPH)

30 LPH30 LPH1450 LPH

Rated ozone output: 120 mg/h. Quick estimate uses:
Estimated O₃ ppm ≈ mg/h ÷ LPH

Estimated O₃

4.000 ppm

Ozone dose

2.00 mg/min

Relative concentration

High

Flow vs Estimated O₃ Curve

Official range: 30–1450 LPH
