BES PRODUCT LIBRARY
Dental Chair Support
ODB
Dental Unit Waterline Protection
On-site aqueous ozone system designed to support dental unit waterline hygiene, biofilm control, and safer clinical water quality.
KEY HIGHLIGHTS
✓ Biofilm Control – Helps control biofilm formation inside dental unit waterlines.
✓ Better Water Quality – Supports cleaner treatment water supplied to dental equipment.
✓ Safer Dental Procedures – Ozonated water from the handpiece helps reduce microbial contamination and supports aerosol control during treatment.
✓ Chemical-Free Operation – Generates aqueous ozone on-site without chemical additives.
APPLICATIONS
✓ Dental Unit Waterline
✓ Dental Clinic
✓ Dental Hospital
✓ Implant Center
PRODUCT SPECS
Use Case
Dental Unit Waterline Protection
Technology
Electrolytic Ozone Water Generation
Output
Aqueous Ozone
Function
Biofilm Control
Application
Dental Chair Waterline
Operation
Automatic Operation
Installation
Point-of-Use
Environment
Dental Clinic / Hospital
VIDEO LIBRARY
Product videos
CLINICAL FLOW DIAGRAM
How ODB supports safer dental waterline operation
💡 Tap a numbered marker or process step to explore the flow.
1
Water enters dental unit
Water enters the dental unit system and becomes the starting point for waterline hygiene control.
QUICK SIMULATION
ODB 16 mg/h ozone simulation
Estimated ozone concentration over one approved 60-minute soaking simulation under constant and changing water-volume conditions.
ODB output: 16 mg/h · concentration curves preserve the existing 60-minute engineering model.
Constant 1 L Water · 1 Hour
Reference condition where the water volume remains fixed during the simulation.
Peak O₃1.52 ppm
Average O₃0.90 ppm
Runtime60 min
Variable Water Volume · 1 Hour
Real-use reference where water volume changes during operation and refill behavior may occur.
Peak O₃1.68 ppm
Average O₃1.13 ppm
Runtime60 min
Left graph conditionsConstant water volume at 1L, ODB output fixed at 16 mg/h, ozone loss included.
Right graph conditionsVariable water volume with refill behavior. Blue line shows ozone concentration; orange line shows water volume.
ODB APPLICATIONS
Four ways ODB supports dental waterline hygiene
1

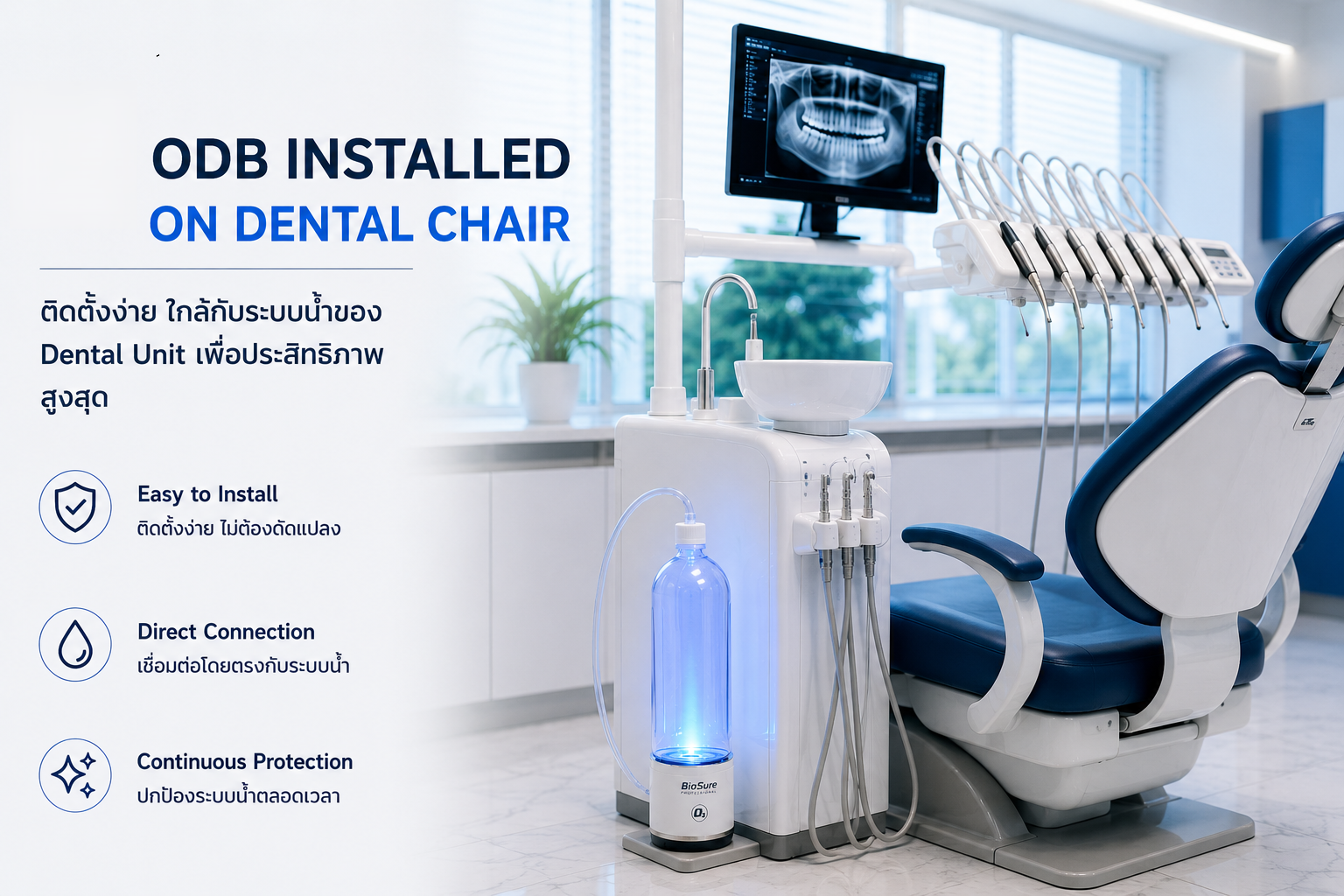

ODB Installed on Dental Chair
Chair-side installation designed to connect with dental unit waterline systems.
2
Biofilm Control
Helps control biofilm formation inside dental unit waterlines.
3
Cleaner Treatment Water
Supports cleaner ozonated water supplied to dental handpieces.
4
Safer Clinical Environment
Helps reduce microbial contamination and supports safer treatment areas.
Verified Certification Profile
Certifications
Certification claims are read from the shared BES certification registry. Available controlled documents are linked from the product resource center.
CE Mark: Conformité EuropéenneCE MarkConformité Européenne
General EU product conformity
Open controlled document →CE MDR: EU Medical Device Regulation (EU) 2017/745CE MDRMedical Device Regulation (EU) 2017/745
Medical-device conformity
Open controlled document →
TGA / ARTG: Australian Register of Therapeutic GoodsTGA (Australia)Therapeutic Goods Administration
Medical therapeutic-goods market authorization
Open controlled document →
Thai FDA: Thai Food and Drug Administration — Medical DeviceThai FDAThai Food and Drug Administration — Medical Device Division
Medical-device establishment and product registration
Open controlled document →RELATED SOLUTIONS
